Configurable cushioning design for sneaker midsoles
Published on July 15, 2020
Sneaker midsoles do a lot more than just providing cushioning. Their design has incredible demands in terms of performance, comfort, durability, and aesthetics.

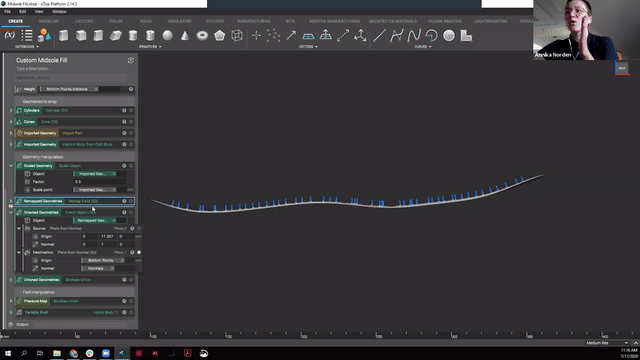

In this nTop Live, Annika Norden, Customer Success Engineer at nTop, shows design techniques that enable you to control every aspect of the geometry of a midsole in nTop. She configures the shape and density of a custom shock absorption pattern based on pressure data.
Watch and learn how to:
- Configure and control custom geometric patterns in nTop
- Use field-driven design and data to optimize their size and orientation
- Refine and optimize your designs using simulations and experimental results
To access the files used in this demo, please click here.
