The nTop notebook has evolved
Written by nTop
Published on September 19, 2022
This month in nTop, we introduced enhancements to the nTop Notebook that allow you to be more productive. Also, we released a block that enables you to generate conformal lattice structures that follow the contour of a part’s outer surfaces.
Don’t forget to click the Update Available button to download the newest version of nTop.
New product updates
New notebook utilities

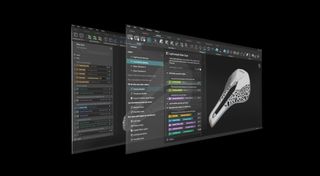

The nTop Notebook has evolved. Over the past month, we released three new Notebook functionalities to help you author and troubleshoot design workflows more effectively.
Notebook Outline: The expandable outline allows you to see a high-level overview of your workflow, quickly navigate to blocks, and trace where you used each variable in your Notebook. Learn more.
Notebook Search: You can now search for specific blocks used within your notebook. Click the search bar at the top of the Notebook Outline or use the Ctrl+F shortcut and start typing the name of a block or variable. Learn more.
Custom Block Editing: You can now view and modify a Custom Block directly in your main nTop instance. Right-clicking on the Custom Block and click “Open Block” to view its contents directly in your nTop Notebook. Learn more.
Conformal lattice structures

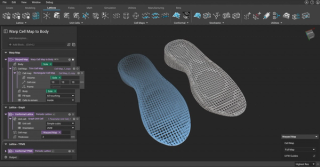

The new Warp Cell Map to Body (Beta) is the newest addition to the utilities of our 3rd generation latticing technology. This block enables you to warp the cell map of a periodic lattice to the contour of an implicit body’s outer surfaces.
In other words, you can now generate conformal TPMS and graph lattice structures—in addition to stochastic lattice structures such as Voronoi.
Pro Tip: The Warp Cell Map to Body (Beta) requires you to trim the cell map to the Implicit Body first. You can experiment with the “Fill type” option of the Trim Cell Map block and create different conformal results.
New content and resources

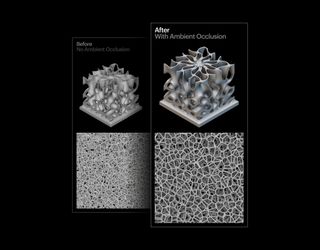

How lighting leads to more accurate designs
You wouldn’t expect something as simple as lighting to be important in engineering design software.
However, accurate visualization enables you to be more productive inside the virtual environment and becomes increasingly important as design complexity increases.
In this blog post, Muhammad Farhan, nTop's Product Manager for Interactivity, gives you insights into why we invested heavily into creating a more immersive environment.

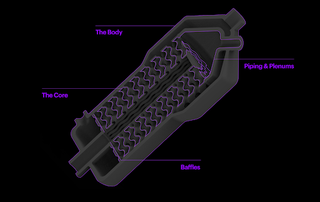

Heat exchanger design with additive manufacturing
Additive manufacturing enables you to create next-generation heat exchanger designs to meet increasing product requirements.
Our experts wrote this article to guide you through the basic engineering design techniques you need to get started.
